Hot cutters

These are our basic models that were designed for small companies that don’t need expensive high speed machines and don’t want to spend a fortune to automate. These machines feature: Digital control that is very user friendly. Single speed motor with feed rate of 7.5 inches per second. Temperature control and cut time are variable to allow
for maximum production. Maximum length is 50 feet and the length tolerance is 3/16 of an inch per 60 inches (depending on material). Two different knife widths are available 4 1/2’’ or 7’’.

Power requirements are 110V, 50# of air pressure and a table to set it on. These machines are ready to use when you receive them, nothing else to buy. These machines can also be upgraded to high speed machines at a later date if you desire.

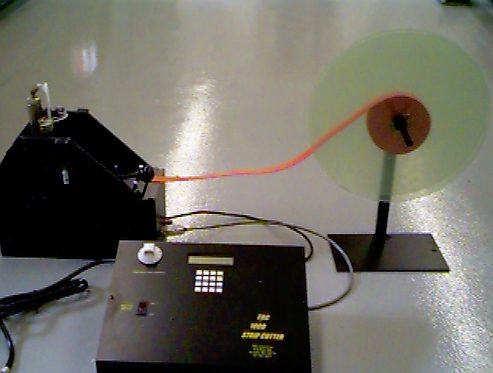

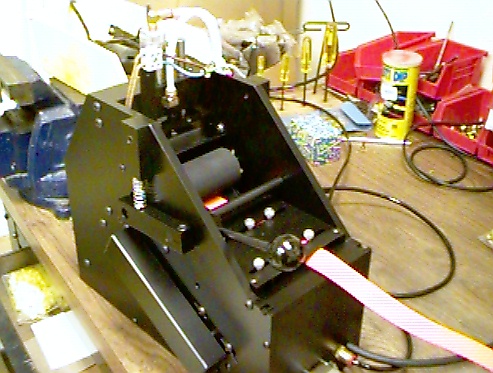

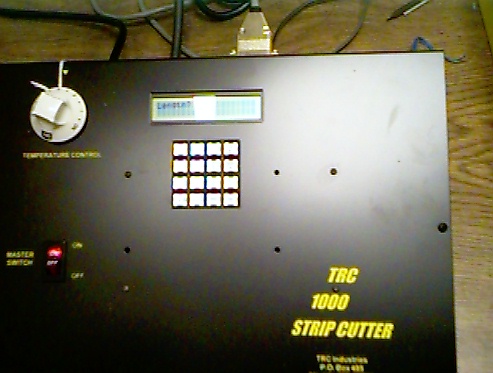

TRC 1000 CS Dimensions are 14’’ x 7’’ x 14’’ for the cutter, 6’’ x 8’’ x 12’’ for the roll stand and 10’’ x 14’’ x 6’’ for the control panel. Roll stand is included.

HC4-CS ............... Only $4045.00
HC7-CS ............... Only $4445.00

Options

• Variable Speed Option (VS) - This option will give you a feed rate
  of up to 22 inches per second with length tolerance of 3/16’’ per
  60 inches with a maximum length of 50 feet. Now only $200.00
• High torque motor option (HT) - This motor has twice the power of
  our standard motor for pulling heavier webbing. $250.00
• Cutoff Switch option (ICO) - This will stop the machine when it runs
  out of material. All program data and count are saved. Just change
  the roll of material and continue on. $250.00
• Times 10 option (T10) - This will give you upto a 500 foot cutting
  length with a minor tolerance loss. $150.00
• Other special applications such as remote start/stop palm switches,
  auxillary inputs or outputs, hole punching, etc. please call for a
  price quote.
• Multi-lingual language for machine programming. If you have a special
  need for different languages or for metric measurements, give us a
  call.
